As machine vision evolves toward higher resolution, faster frame rates, and more intelligent analysis, the traditional Camera Link standard has gradually reached its performance ceiling. The Camera Link HS (High Speed) protocol emerged as a next-generation machine vision interface standard, elevating transmission bandwidth to unprecedented levels. The physical foundation enabling this innovation is the dedicated Camera Link HS cable.

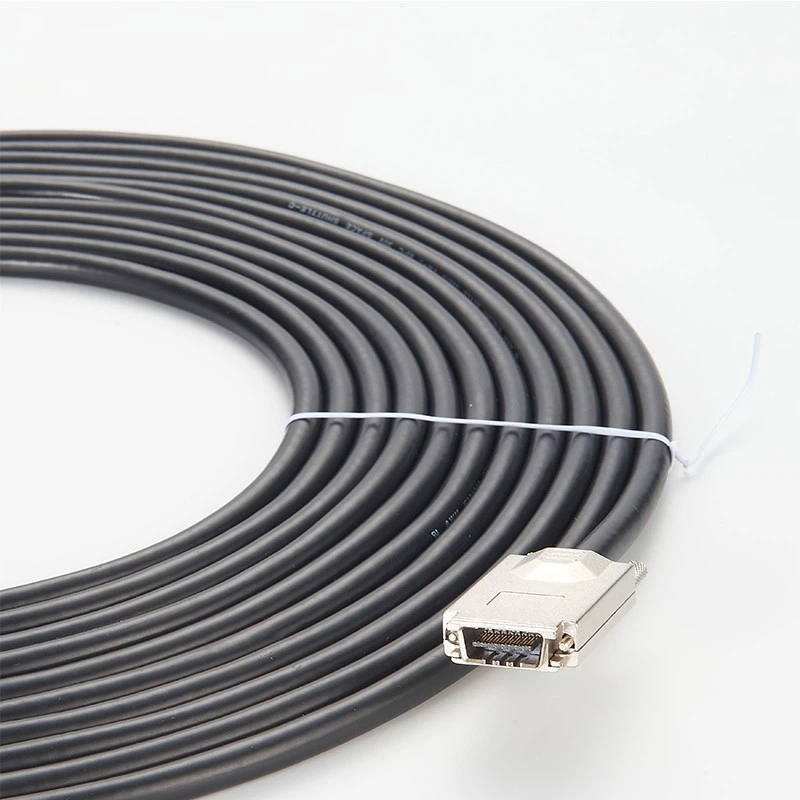

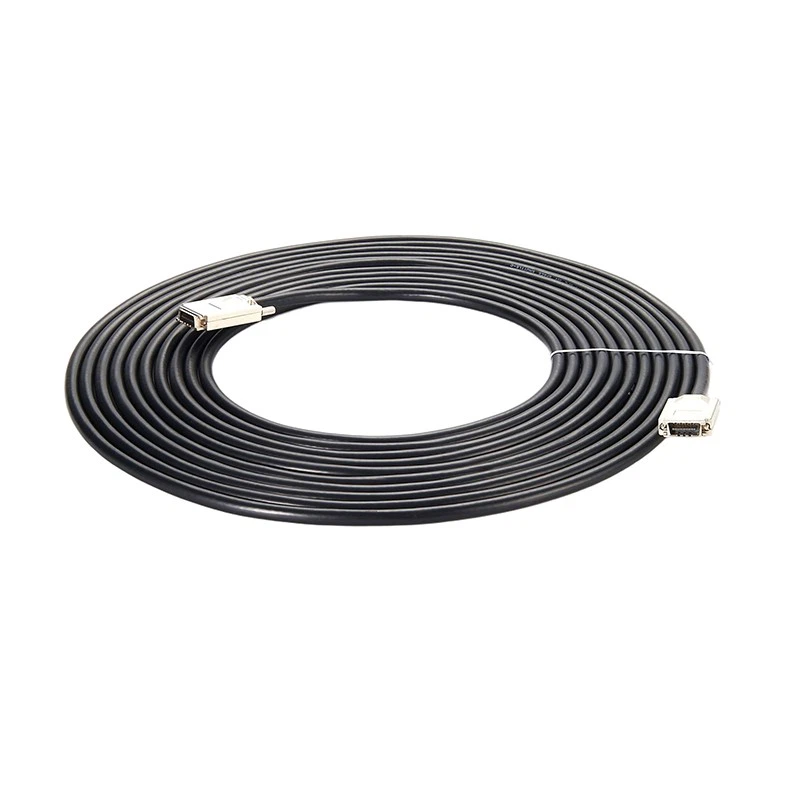

Leveraging cutting-edge cable engineering technology, Karobert Technology introduces a high-performance cable series fully compliant with the Camera Link HS standard. This series delivers reliable, ultra-high-speed data connectivity solutions for industrial inspection, scientific imaging, and high-end vision applications.
Camera Link HS represents not merely an upgrade but an architectural revolution. It replaces traditional parallel transmission with a serial link architecture, achieving extremely high bandwidth using a minimal number of coaxial or twisted-pair cables. This overcomes the multiple limitations of traditional Camera Link in distance, bandwidth, and cabling complexity.
Core breakthrough advantages include:
1. Ultra-high bandwidth:
Single-channel rates have evolved from the initial 3.125Gbps to the latest 16Gbps. Four-channel aggregation enables a total bandwidth of 64Gbps, effortlessly supporting cameras with resolutions above 8K and high frame rates.
2. Extended transmission distance:
Using high-quality cables, reliable transmission reaches 100 meters (copper) or even further (fiber), far exceeding Camera Link's 10-meter limit.
3. Simplified cabling:
Miniaturized connectors (e.g., Micro-C) and fewer wire pairs significantly reduce cable bulk and weight, making it ideal for space-constrained applications like robotics and mobile platforms.
4. Robust Scalability:
Native support for channel binding and multi-camera synchronization facilitates the construction of complex multi-camera vision systems.
Camera Link HS is commonly used in high-speed motion detection equipment. Our solutions include:
1. High-flex drag chain-specific models:
Featuring a special short-pitch stranding and layered design for the cable core, combined with a high-performance PUR outer jacket, these cables withstand over 8 million drag chain cycles, making them ideal for automated production lines and robot vision systems.
2. Robust connection system:
Features standard Micro-C connectors with locking mechanisms for secure connections in vibrating environments. Customized solutions compatible with other miniaturized connectors are available upon request.
3. Lightweight and compact design:
Optimized cable diameter and weight reduce load on moving parts, enhancing system dynamics.
Comprehensive Environmental Adaptability:
1. Wide Temperature Range:
Standard products operate from -40°C to +80°C, meeting most industrial environment requirements.
2. Oil and Chemical Resistance:
Outer jackets available in oil-resistant PUR or specialty materials for machine tools, food/beverage, and other environments with oil contamination or cleaning agents.
3. Certification Compliance:
Cables meet international standards including CE and RoHS, ensuring reliable quality.
Application Scenarios
Karobert Camera Link HS cables form the foundation for applications demanding extreme speed, precision, and reliability:
Semiconductor and Electronics Manufacturing: Enables high-precision defect detection (ADI/AEI) for silicon wafers and masks, along with automatic optical inspection (AOI) for PCBs, transmitting massive volumes of high-resolution image data.
Flat Panel Display (FPD) Inspection: High-speed scanning for pixel defect and uniformity detection on OLED and Micro-LED production lines.
High-Speed Motion Analysis and Scientific Research: Capturing fleeting high-definition moments in applications like ballistic tracking, fluid dynamics studies, and cellular microscopy.
Intelligent Transportation and License Plate Recognition: Enabling ultra-high-definition, high-frame-rate video capture and real-time analysis on highways.
Medical and Life Sciences Imaging: Supporting high-speed image transmission for advanced endoscopes, surgical microscopes, and scientific cameras.
