In modern machine vision systems, the precise timing of image acquisition is often more critical than the resolution of the images themselves. Whether triggered by position (encoder) or events (photoelectric/laser sensors), the I/O trigger lines of industrial cameras serve as the "decision-making nerve" connecting perception to action. They transmit not merely a simple switch signal, but a precise timestamp that determines whether the entire inspection process can be successfully initiated. However, issues such as electromagnetic interference, mechanical vibration, and signal reflection in factory environments often make this critical link the root cause of missed shots, false captures, or image tearing.
Leveraging deep expertise in machine vision synchronization mechanisms, Karobert Technology has engineered a high-performance I/O trigger cable series specifically optimized for industrial camera applications. Transcending the limitations of standard wiring, our cables feature nanosecond-level timing optimization, military-grade anti-interference design, and industrial environment adaptation engineering. This ensures your vision system consistently captures clear, usable images at precisely the right moment-even in complex operating conditions.

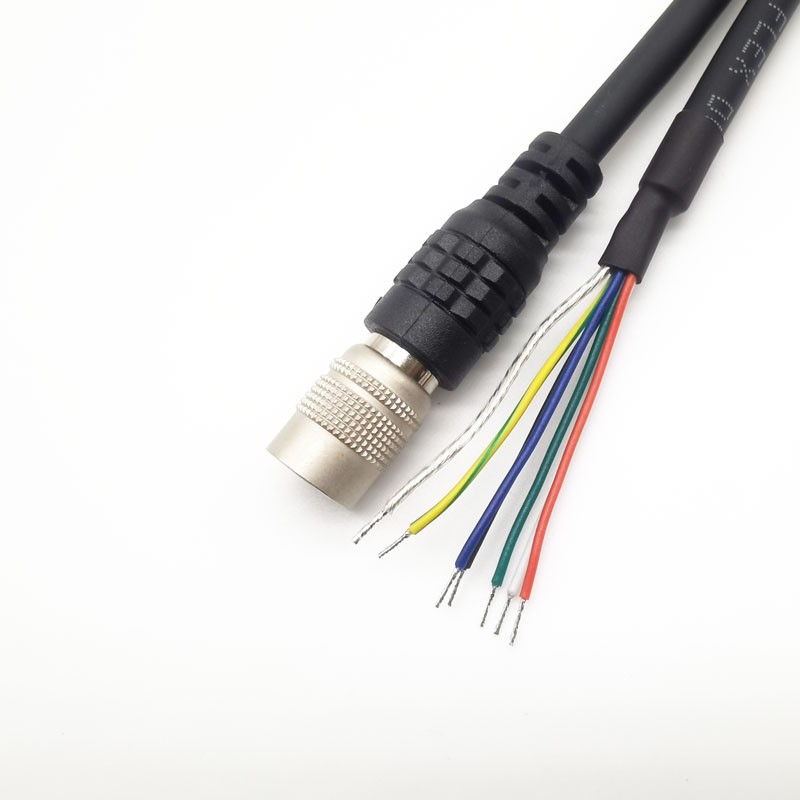

Industrial Camera IO Trigger Cable Design for Industrial Environments:
1. Mechanically Reinforced Structure:
(1) Micro-stranded technology enables a minimum bending radius of 4D (cable diameter).
(2) Integrated aramid reinforcement layer with tensile strength ≥250N.
(3) Chain-drag-specific models pass 20 million bend cycles (Standard: EN 60217-6).
2. Environmental Tolerance:
(1) Oil-resistant PUR jacket material, UL 94 V-0 certified.
(2) Operating temperature range: -40°C to 105°C.
(3) Optional IP67/IP68-rated connectors.
3. Smart Monitoring Options:
(1) Optional fiber Bragg grating sensors for real-time monitoring of bending status and temperature.
(2) Supports trigger counting function with usage data output via I²C interface.
Application Scenarios: From Basic Inspection to Cutting-Edge Research:
1. High-Speed Assembly Line Inspection:
On a packaging inspection line processing 600 items per minute, Karobert low-latency trigger cables reduced transmission delay from encoder signals to cameras from 450ns to 180ns. This enabled cameras to capture images at more precise positions, boosting detection accuracy from 99.2% to 99.8%.
2. Multi-Camera Synchronization System:
In 3D inspection of automotive components, eight cameras synchronized via Karobert length-matched trigger cables achieved <5ns timing variance between units. This ensured precise alignment of 3D point cloud data, improving measurement repeatability from ±0.15mm to ±0.05mm.
3. Motion Analysis and Scientific Research:
In ballistic analysis experiments, the trigger line transmits 1ns-width laser pulse signals with time jitter controlled within ±50ps, providing a reliable timing reference for high-speed motion analysis.
4. Semiconductor Manufacturing:
Within wafer inspection equipment, the trigger line operates in Class 100 cleanroom environments using low-outgassing materials, meeting semiconductor manufacturing's stringent cleanliness requirements.
