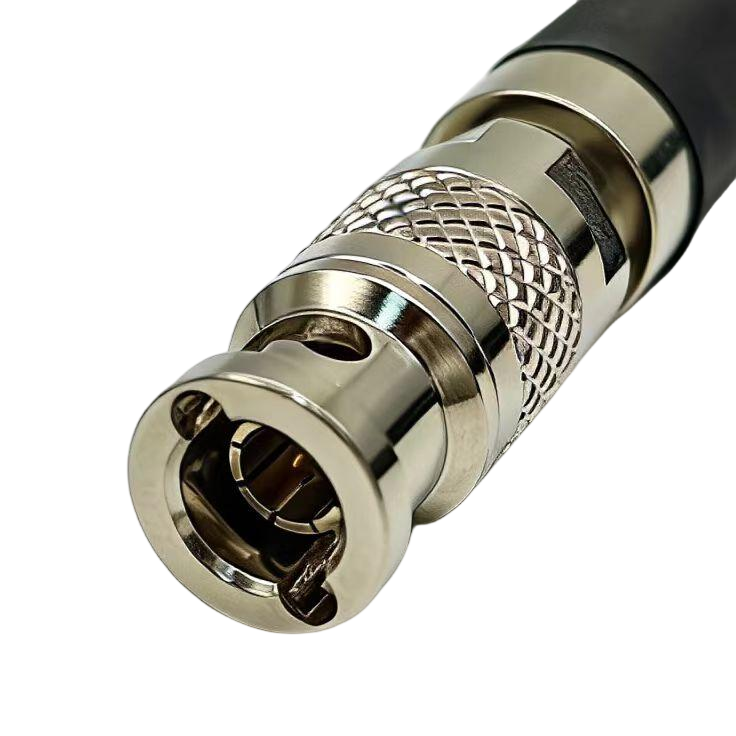

In the domains of high-definition video, lossless audio, and high-frequency data signal transmission, connector performance often becomes the most critical physical bottleneck in the entire system link. Standard BNC connectors approach their electrical performance limits when handling 1080p and higher resolution signals, or precision measurement signals exceeding 3GHz in frequency. HD-BNC (High-Definition BNC) was developed to address this need. While maintaining physical compatibility with the classic BNC locking mechanism, it employs precision engineering to redesign the connector's internal structure, achieving exceptional bandwidth and signal integrity up to 3GHz and even 6GHz.

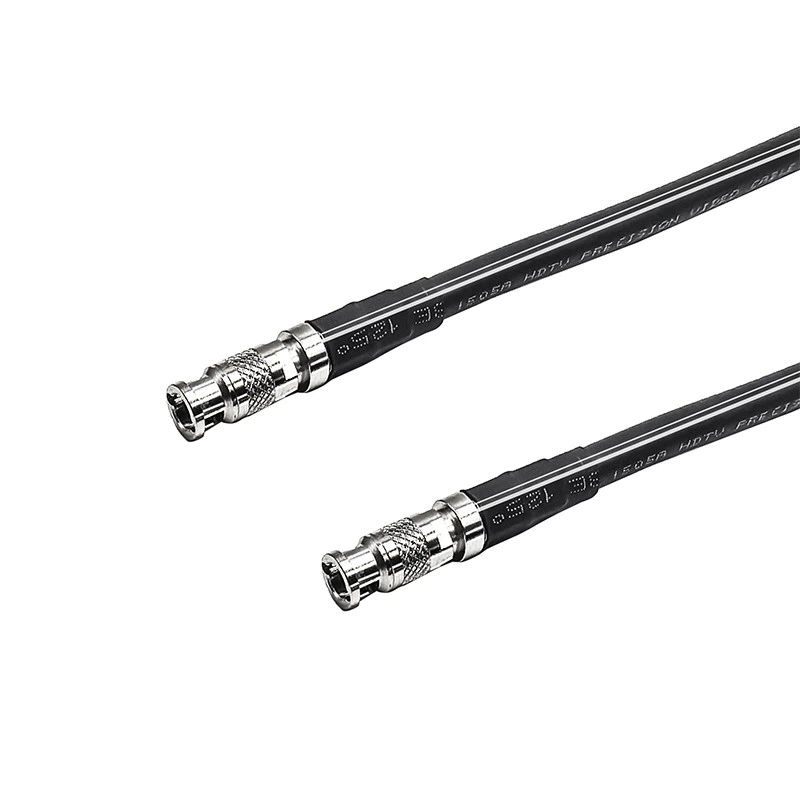

Leveraging its deep expertise in RF and precision connector technology, Karobert Technology has launched a high-performance HD-BNC cable series. We focus not only on mechanical upgrades to the connector but also on systematic optimization from cable media and shielding to termination processes. This ensures the full potential of this "enhanced" interface is realized at 100% in demanding applications such as broadcasting, medical, defense, and industrial inspection, achieving the leap from 'connectivity' to "perfect transmission."
The Core Value of HD-BNC: Beyond "High Definition," it represents a series of engineering enhancements for high-frequency transmission:
1. Extended Bandwidth Capability:
Standard BNC connectors typically experience steep performance degradation beyond 2-3GHz, whereas premium HD-BNC connectors reliably support bandwidths up to 3GHz or even 6GHz. This makes them ideal for handling 4K/8K video baseband signals (e.g., HD-SDI, 3G-SDI), high-resolution radar intermediate frequency signals, and high-speed data streams from precision test instruments.
2. Exceptional Voltage Standing Wave Ratio (VSWR):
Through precision air-dielectric design or Teflon (PTFE) insulation, HD-BNC achieves lower VSWR across a broader frequency band (better than 1.3:1 @ 3GHz). This translates to reduced signal reflection, lower insertion loss, and purer waveforms-critical for maintaining the "eye diagram" quality of high-speed digital signals.
3. Strict 75-ohm impedance control:
Optimized for video and RF systems, ensuring end-to-end impedance matching from connector to cable to prevent ringing, ghosting, and signal attenuation caused by impedance mismatch.
4. Backward compatibility:
The HD-BNC interface is fully compatible with standard BNC in physical dimensions, allowing direct insertion into standard BNC female connectors for seamless upgrades and transitions with existing systems.
Karobert HD-BNC cables are the ideal choice for the following professional and high-demand applications:
1. Professional broadcasting and media production:
Transmitting HD-SDI, 3G-SDI, and 12G-SDI signals, connecting 4K/8K cameras, switchers, recorders, and monitors. Standard equipment for television stations, broadcast trucks, and production studios.
2. Medical imaging equipment:
Connects high-definition video outputs and display units for ultrasound diagnostic systems, endoscopy systems, digital X-ray machines, and similar devices requiring exceptional image fidelity.
3. Test and measurement instruments:
Used for probe connections and signal interconnections in precision instruments such as high-frequency oscilloscopes, spectrum analyzers, and network analyzers, demanding minimal signal loss and distortion.
4. Security and Surveillance Systems:
Employed in high-end analog HD (e.g., HDCVI) and digital HD surveillance systems requiring ultra-long distances (with amplifiers) or exceptional image quality.
5. Industrial Vision and Inspection:
Connects high-resolution industrial cameras (especially those using CoaXPress-over-Fiber or SDI output interfaces) for high-speed image capture.
6. Defense and Aerospace:
For demanding RF and video signal transmission in radar, electronic warfare systems, and airborne/vehicle-mounted video systems.
We deliver not just an interface or a cable, but a complete transmission channel optimized for high-frequency, high-fidelity signals. It ensures your professional equipment performs at its full designed capability, making every frame and data point in critical missions clear, accurate, and error-free.
When your system defines "professional," your connectivity standards must evolve alongside it. Choose Karobert HD-BNC cables to establish a clear, stable, and future-proof foundation for your visual systems and precision instruments.
