In today's data-driven productivity landscape, the core of Industry 4.0 and smart manufacturing has shifted from physical equipment to invisible high-speed data streams. Industrial cameras capture hundreds of millions of pixels per second, AI processors analyze massive information in real time, and distributed control systems execute microsecond-level commands in sync-all of this connectivity relies on a reliable "high-speed data highway."
Karobert Technology, as an expert in industrial high-speed connectivity solutions, deeply understands that "speed is insight, and productivity." Our high-speed transmission cable series, specifically engineered for demanding industrial environments, aims to break through traditional bottlenecks and become the reliable data engine driving your next-generation intelligent systems.
Karobert Solutions: Engineering Designed for Industrial-Grade High Speed.
Our high-speed transmission cables systematically address these challenges across material science, structural design, and validation testing.
Defending Signal Purity: Ensuring Data Fidelity from the Source
1. Precision Conductors and Dielectric Materials:
Utilizing ultra-high-purity annealed oxygen-free copper as conductors, paired with low-loss insulation materials featuring stable dielectric constants, minimizes signal attenuation and distortion at the physical level.
2. Multi-Layer Active Shielding Architecture:
Innovative triple-layer shielding design featuring aluminum foil, high-density braided mesh, and drain wires. Aluminum foil combats high-frequency interference, braided mesh defends against low-frequency magnetic fields, and drain wires ensure ground integrity. Achieves over 90% shielding coverage for stable operation even near frequency converters.
3. Strict impedance and skew control:

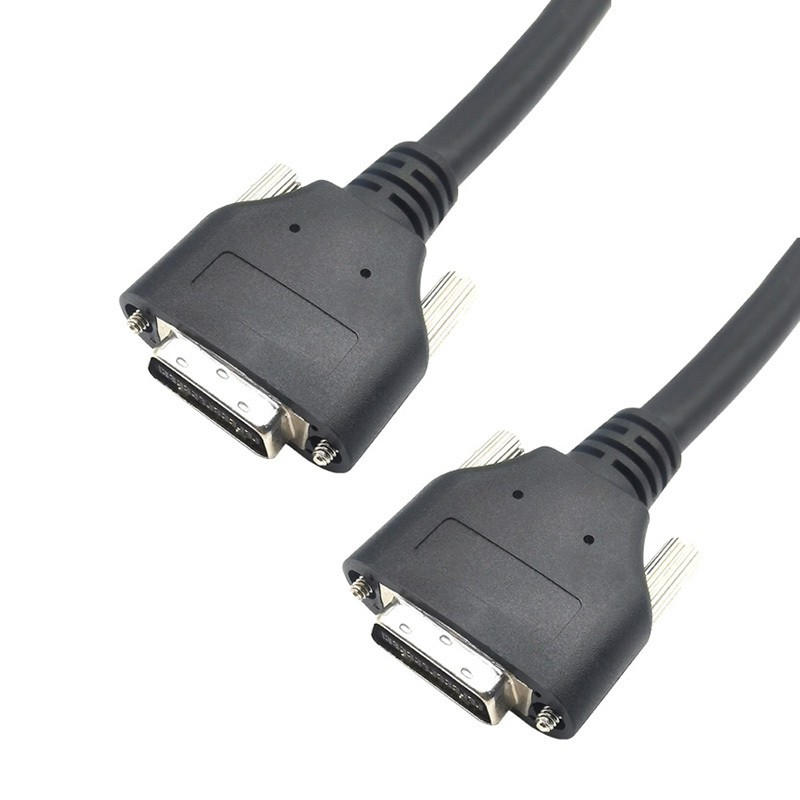

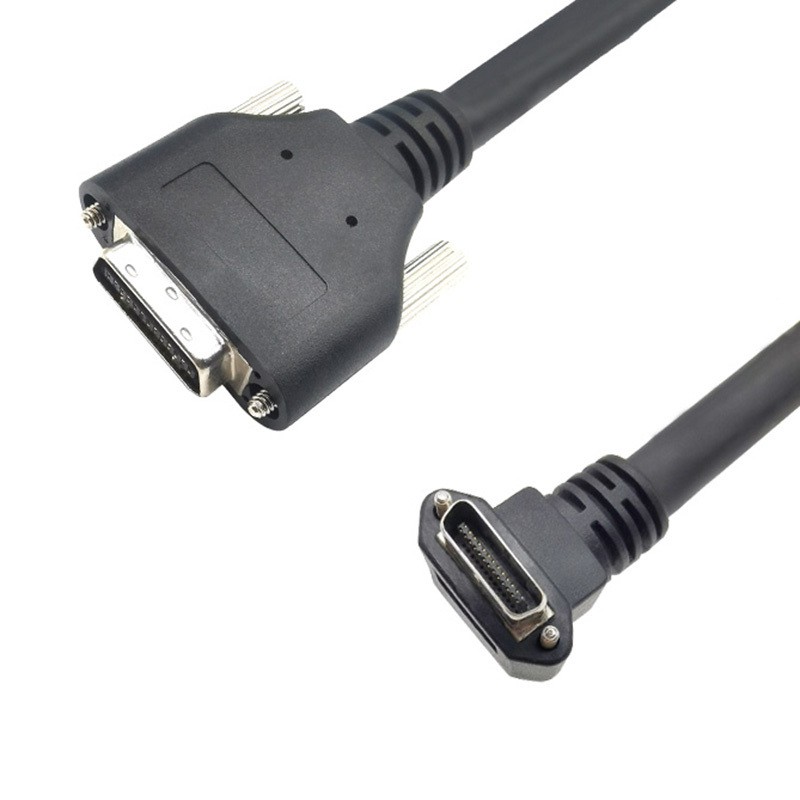

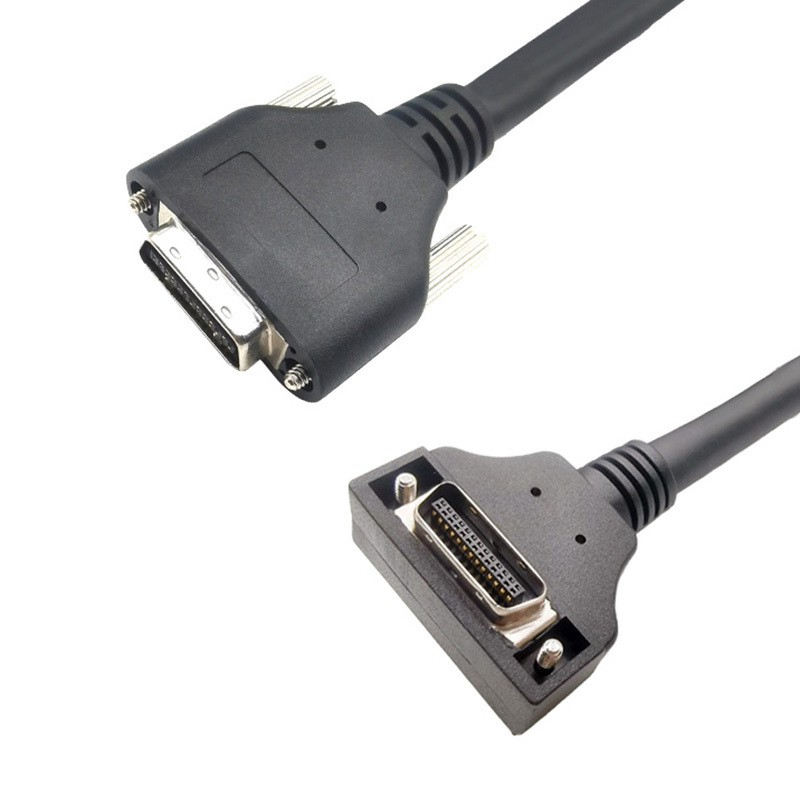

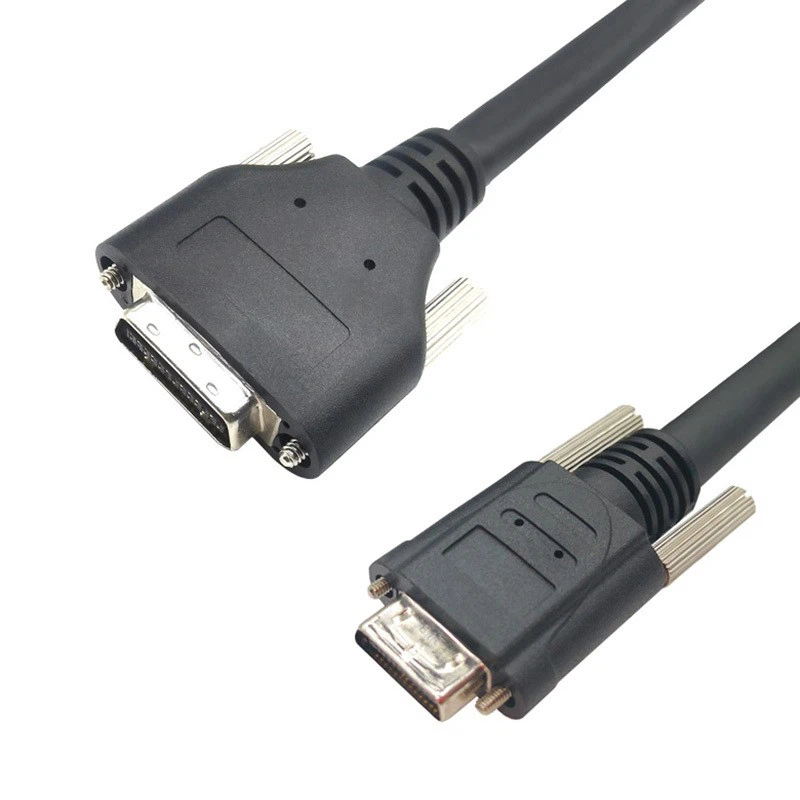

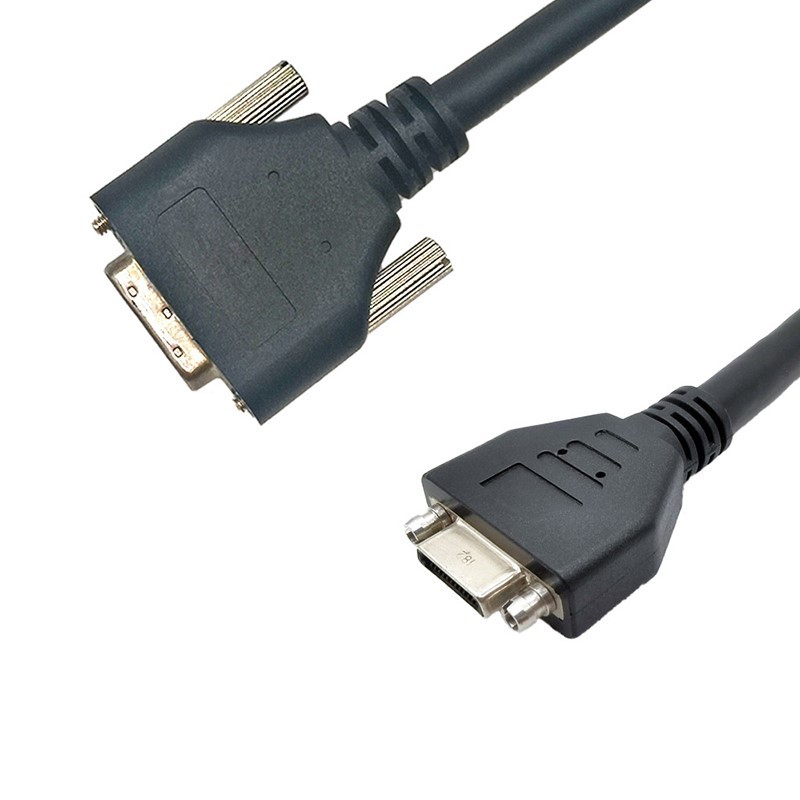

Throughout production, characteristic impedance (e.g., 75Ω coax, 100Ω differential pairs) is continuously monitored. Inter-pair skew within multi-core cables is rigorously matched to ensure synchronous delivery of high-speed digital signals-critical for parallel protocols like Camera Link.
Dynamic Durability Design: Ensuring Speed Remains Stable During Motion
1. Patented High-Flexibility Structure:
For drag chain applications, we employ short-pitch stranding and layered shielding technology, enabling internal conductors to move in unison during bending to reduce stress concentration. Independently lab-tested, our CT Series drag chain cables achieve over 10 million reciprocating cycles without performance degradation.
2. Integrated Reinforcement:
High-performance aramid fibers are embedded within the cable core as the primary tensile member, effectively absorbing mechanical stress and protecting precision conductors from tensile damage.
3. Secure Connection Interfaces:
Connectors feature all-metal housings, gold-plated contacts, and mechanical locking designs (e.g., screw-locked CoaXPress BNC, snap-locked M12 D-coded) to maintain consistent contact resistance in vibrating environments and prevent signal interruptions caused by micro-motion wear.
Comprehensive Environmental Adaptability
The outer jacket utilizes premium oil-resistant, chemically resistant, and flame-retardant PUR (polyurethane) material, with a wide operating temperature range from -40°C to +105°C.
Fully compliant with UL, CE, and RoHS certifications, select models meet IEC 61373 vibration and shock standards for railway vehicle equipment, accommodating diverse requirements from cleanroom to outdoor installations.
